1) Suchen Sie einen von uns hergestellten Kettentypen aus.
2) Überprüfen Sie alle technischen Details und Abmessungen.
3) Senden Sie uns eine Angebotsanfrage. Wir setzten uns schnellstmöglich mit Ihnen in Verbindung.

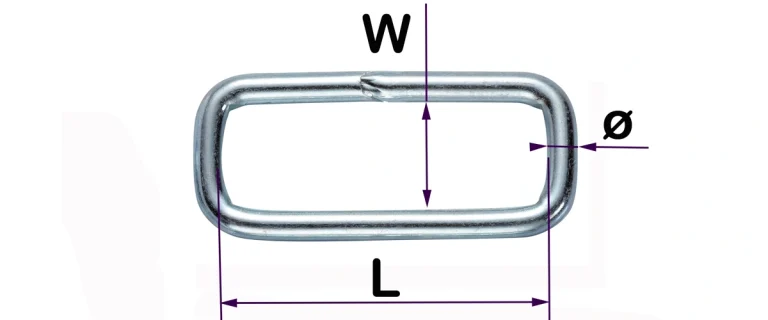

| Glieder | ø | L | W | Gewicht gr | Arbeitslast |
|---|---|---|---|---|---|
Ø1,95x25x6 | 1,95 | 25,0 | 6,0 | 1,51 | 60 Kg |
Ø2,80x25x6 | 2,80 | 25,0 | 6,0 | 3,25 | 100 Kg |
Ø3,00x33x8,8 | 3,00 | 33,0 | 8,8 | 4,9 | 110 Kg |
Ø3,20x31x7 | 3,20 | 31,0 | 7,0 | 5,15 | 120 Kg |
Ø3,80x21x10 | 3,80 | 21,0 | 10,0 | 6,13 | 170 Kg |
Ø3,80×37,3×8,3 | 3,80 | 37,3 | 8,3 | 8,6 | 170 Kg |
Ø2,40x17x5,7 | 2,4 | 17 | 5,7 | 1,7 | 80 Kg |
Ø3,20x32x7,5 | 3,2 | 32 | 7,5 | 5,2 | 120 Kg |
Ø3,20x28x7 | 3,2 | 2 | 28X7 | 4,7 | 120 Kg |
Ø3,00x26x6 | 3 | 3 | 26X6 | 3,8 | 110 Kg |
Ø3,00x25x6 | 3 | 3 | 25X6 | 3,7 | 110 Kg |
Ø3,90×42,3×9,4 | 3,9 | 3 | 9,4 | 10,4 | 170 Kg |
Ø2,40x22x7,5 | 2,4 | 22 | 7,5 | 2,15 | 80 Kg |
Ø2,40x26x7,5 | 2,4 | 26 | 7,5 | 2,45 | 80 Kg |
Ø2,40x16x6 | 2,4 | 40 | 16X6 | 1,73 | 80 Kg |
Ø3,00×40,5×8 | 3 | 40 | 5X8 | 5,6 | 110 Kg |
Ø2,80×20,5×7 | 2,8 | 20 | 5X7 | 2,9 | 100 Kg |
Ø3,00x21x12 | 3 | 3 | 21X12 | 3,94 | 110 Kg |
Ø3,80x37x8 | 3,80 | 37,0 | 8,0 | 8,48 | 170 Kg |
Ø3,00x23x6 | 3,00 | 23,0 | 6,0 | 3,52 | 110 Kg |
Ø3,00×27,3×9 | 3,00 | 27,3 | 9,0 | 4,36 | 110 Kg |
Ø3,00x27x7 | 3,00 | 27,0 | 7,0 | 4,1 | 110 Kg |
Ø3,00x28x7,5 | 3,00 | 28,0 | 7,5 | 4,2 | 110 Kg |
Ø3,00x30x10 | 3,00 | 30,0 | 10,0 | 4,7 | 110 Kg |
Ø3,00x31x7 | 3,00 | 31,0 | 7,0 | 4,53 | 110 Kg |
Ø3,00x31x8 | 3,00 | 31,0 | 8,0 | 4,6 | 110 Kg |
Ø3,00x32x7 | 3,00 | 32 | 7,0 | 4,6 | 110 Kg |
Ø3,00x37x8 | 3,00 | 37,0 | 8,0 | 5,27 | 110 Kg |
